Architectural Linear 35 (AL35) Windows/Doors
Product Description

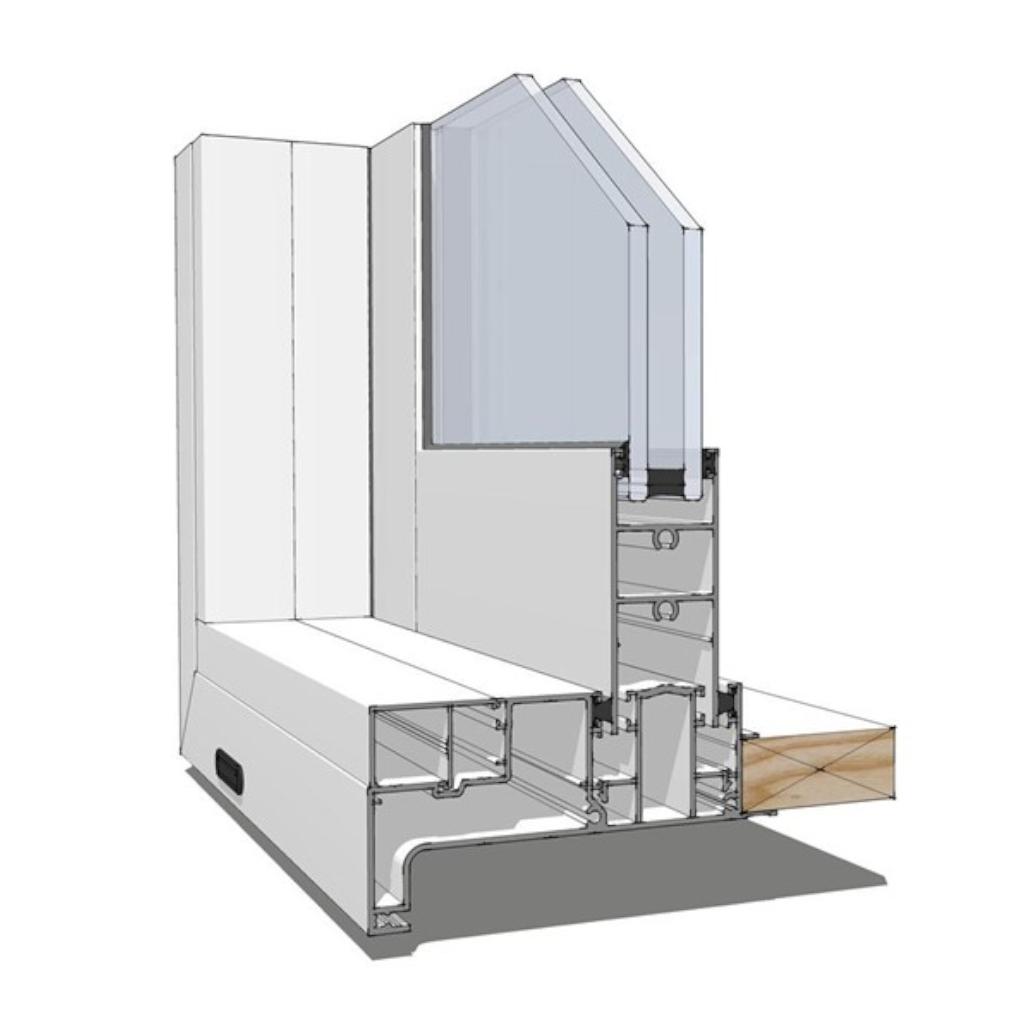

The combination of flush surfaces, square shapes and timber liners gives the AL35 suite a clean modern aesthetic. Designed for residential environments where both value for money and performance are important.
The suite features flush door tracks, and the capability to meet New Zealand residential performance standards.
Application
Standard residential applications where value for money and performance are important. Suitable for mid to high end homes. Best when;
- modern, flat aesthetic is required
- a standard liner finish is required
Can be integrated with other Fairview Architectural ranges for maximum design advantages.
Features overview
- Full range of mullions and transoms including internal box stiffening or external fins.
- Hinged door panels available in 77mm or 125mm stile widths.
- Bi-fold doors can be bottom rolling with the weight carried on the sill; or top hung when the lintel is designed to receive the panel loads.
- Sliding doors panels can span up to 2400mm height and 1500mm width, creating impressive openings. Heavy duty roller options manages panels up to 150kg.
- Bevelled or square glazing bead options for optimal aesthetic appearance.
- Hinge and bi-fold doors can be manufactured up to 2400mm height in most situations.
- Optional anodised tracks for long term performance.

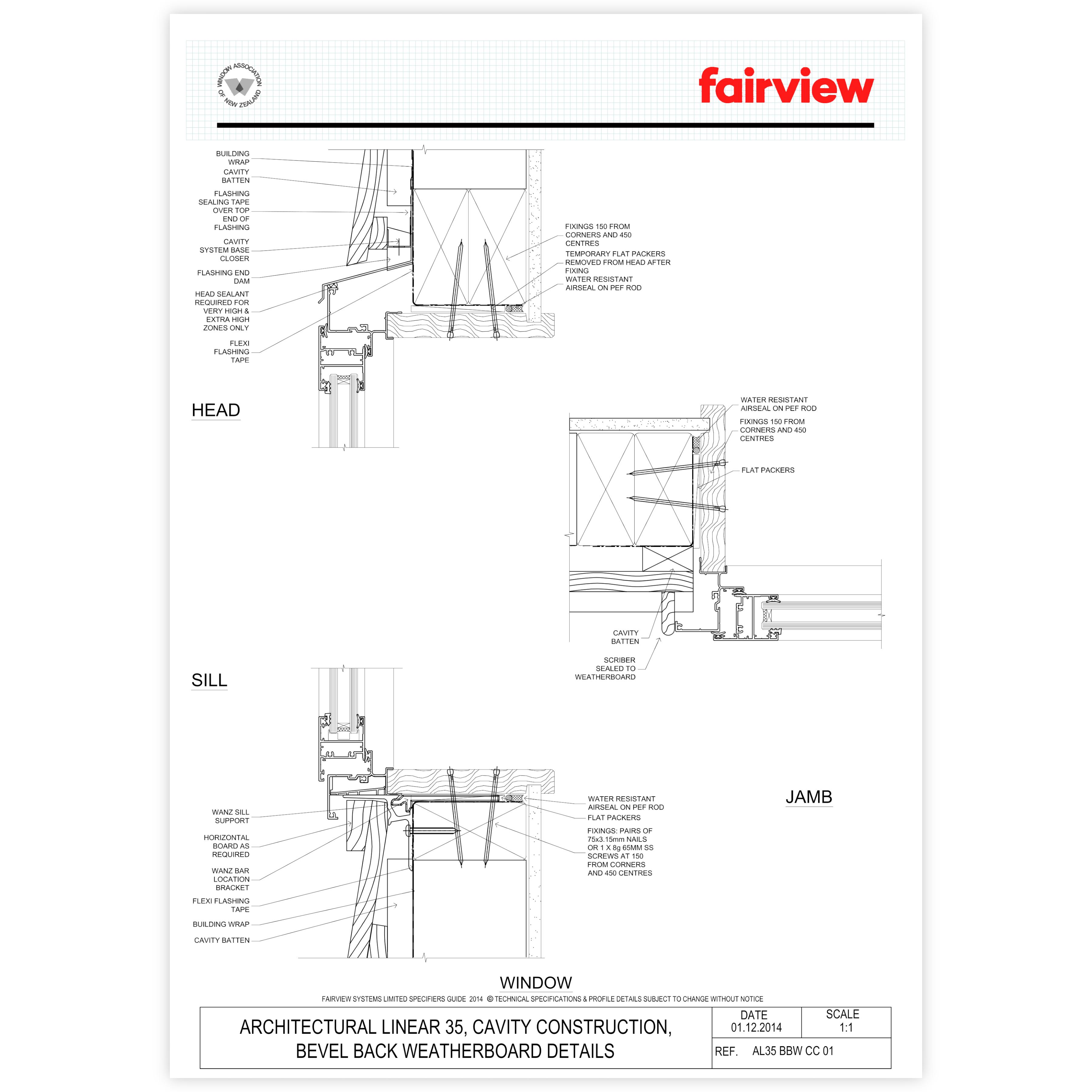

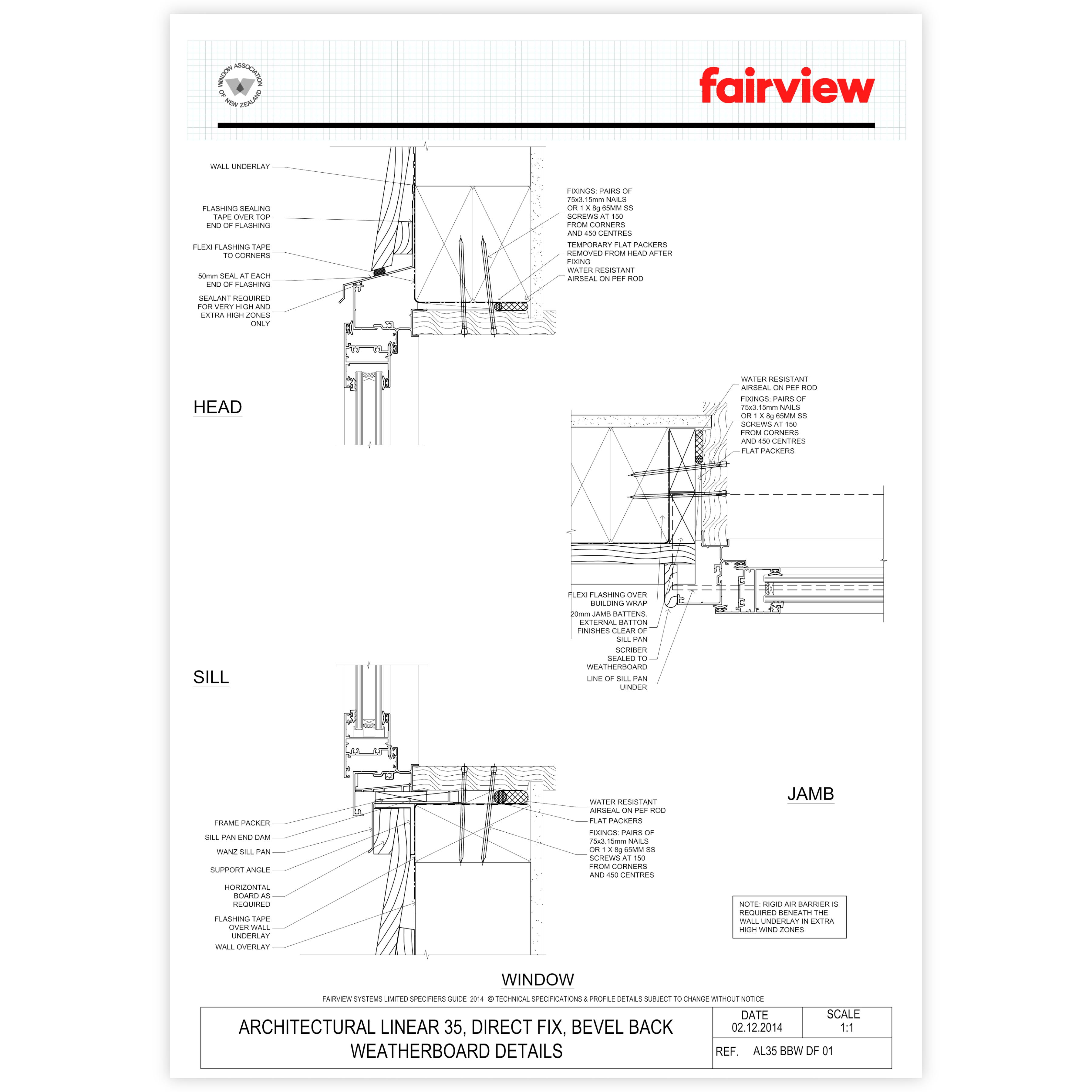

- Traditional New Zealand installation method using timber reveals.
- Sashes can be added without expensive sub-frames.
- Heavy duty mullion options that can span up to 3000mm height.
- Condensation drainage channel with anti-blow-back valve for high water egress performance.
- 19mm weather facing flange.
Glazing options
35mm glazing platform provides a glazing capability up to 24mm.
The product range consists of:

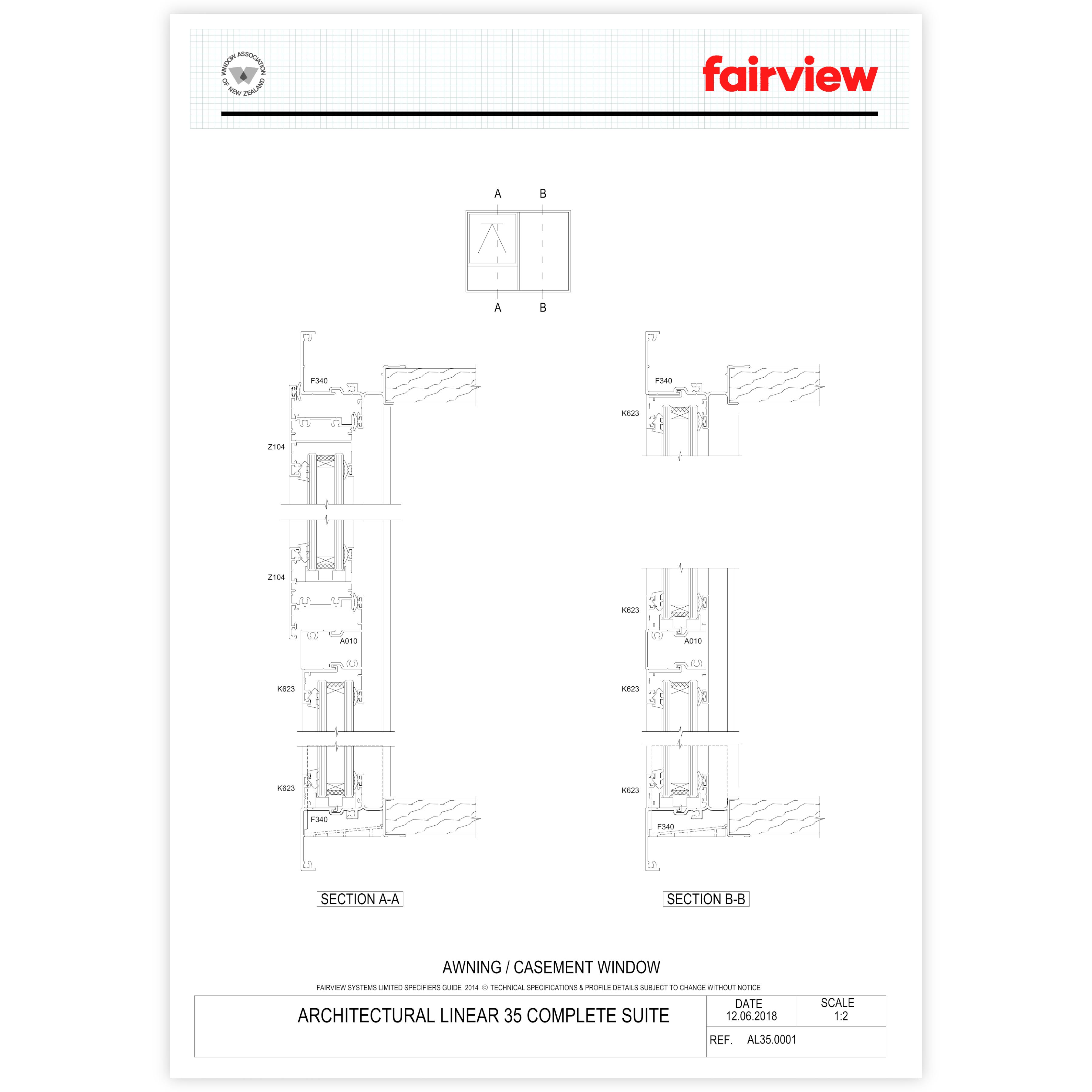

- Fixed, awning and casement windows
- Bi-fold windows (open-out)
- Sliding windows (horizontal)
- Hinged doors (both open-in or open-out)
- Bi-fold doors (bottom rolling panels up to 75kg)
- Sliding doors (standard of external sliding panels)
- Stacking doors (standard or external sliding panels)
Finishes/Colours
Powdercoated: huge range of standard and non-standard colours.
Anodised: standard colour options are silver, black and bronze, 12, 20 and 25 micron thickness. Other colours and thicknesses are available.
EUROWOOD™: a range of wood-grain finishes available.
Hardware
Stella, Kanso and Verta hardware options available.
